Ladybug!

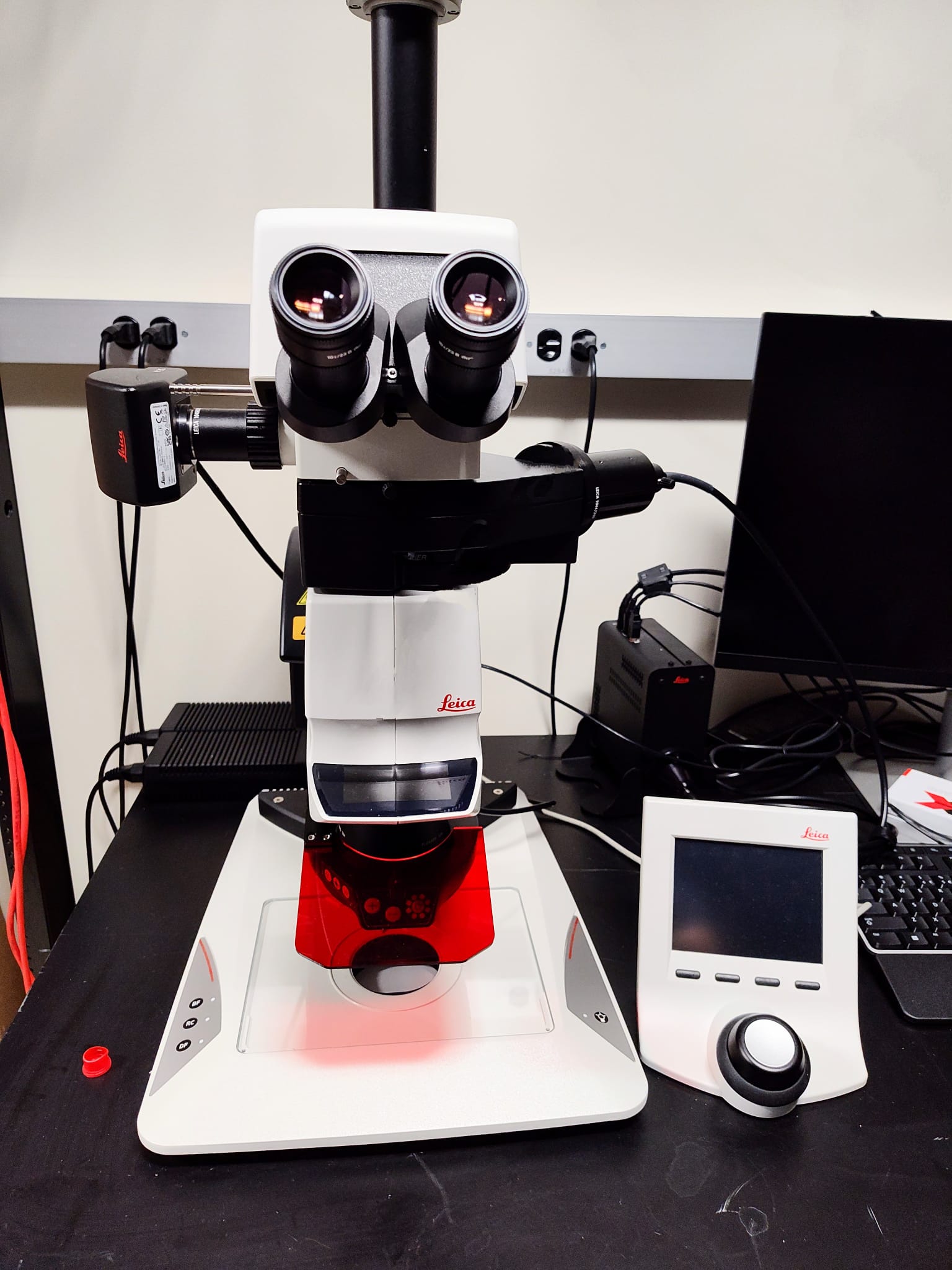

Leica M205 FA Stereomicroscope with Fluorescence
Hardware
- Leica M205 FA fully motorized fluorescence stereo microscope
- 20.5:1 motorized zoom with 7.8x-160x magnification range
- K3C Colour camera (3072 px x 2048 px, 2.4 μm x 2.4 μm) https://www.leica-microsystems.com/products/microscope-cameras/p/k3-m/specification/
- K5 Scientific CMOS Microscope Camera for fluorescence (2048 x 2048 pixels 6.5 µm).
Objective Lenses
- Objective Planapo 1.0x M-series
- NA= 0.035
- WD (mm)
Filters
- Filter set ET DAPI BP - M205FA/M165FC
- - excitation filter ET 395/25 nm
- - emission filter ET460/50 nm
- Filter set ET GFP - M205FA/M165FC
- - excitation filter ET470/40 nm
- - emission filter ET525/50 nm
- Filter set ET mCherry - M205FA/M165FC
- - excitation filter ET560/40 nm
- - emission filter ET630/75 nm
